Filtration · Heavy-duty series

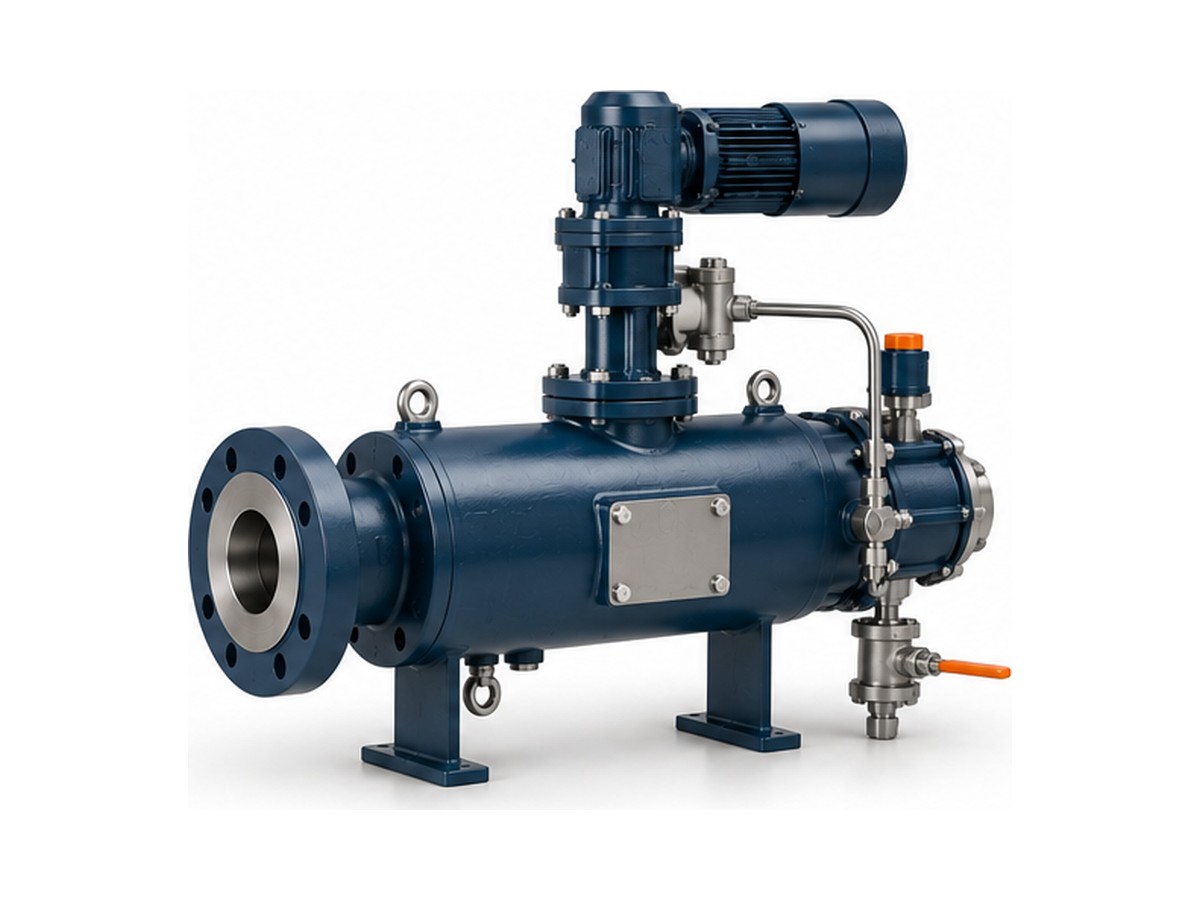

AF automatic self-cleaning filter
Continuous filtration down to 25 µm with no interruption of flow and no consumables.
Water & wastewaterOil & gasChemical processing
- Flow range
- 50 – 10,000 gpm
- Filtration
- 25 – 3,000 µm
- Pressure rating
- up to 150 psi
- Control
- PLC, 4–20 mA, dry contacts
Stocked at distributors·Typical lead time 7–10 days
A rotating backwash arm cleans the screen on differential pressure or a timer, using less than 1% of the flow. Cooling-water intakes, spray nozzles and heat exchangers are the usual duty.
Specifications
| Flow range | 50 – 10,000 gpm |
|---|---|
| Filtration | 25 – 3,000 µm |
| Pressure rating | up to 150 psi |
| Control | PLC, 4–20 mA, dry contacts |
Need it sized?
Send fluid, flow and head. An application engineer returns a selection and curve within one business day.
