Filtration · Sanitary series

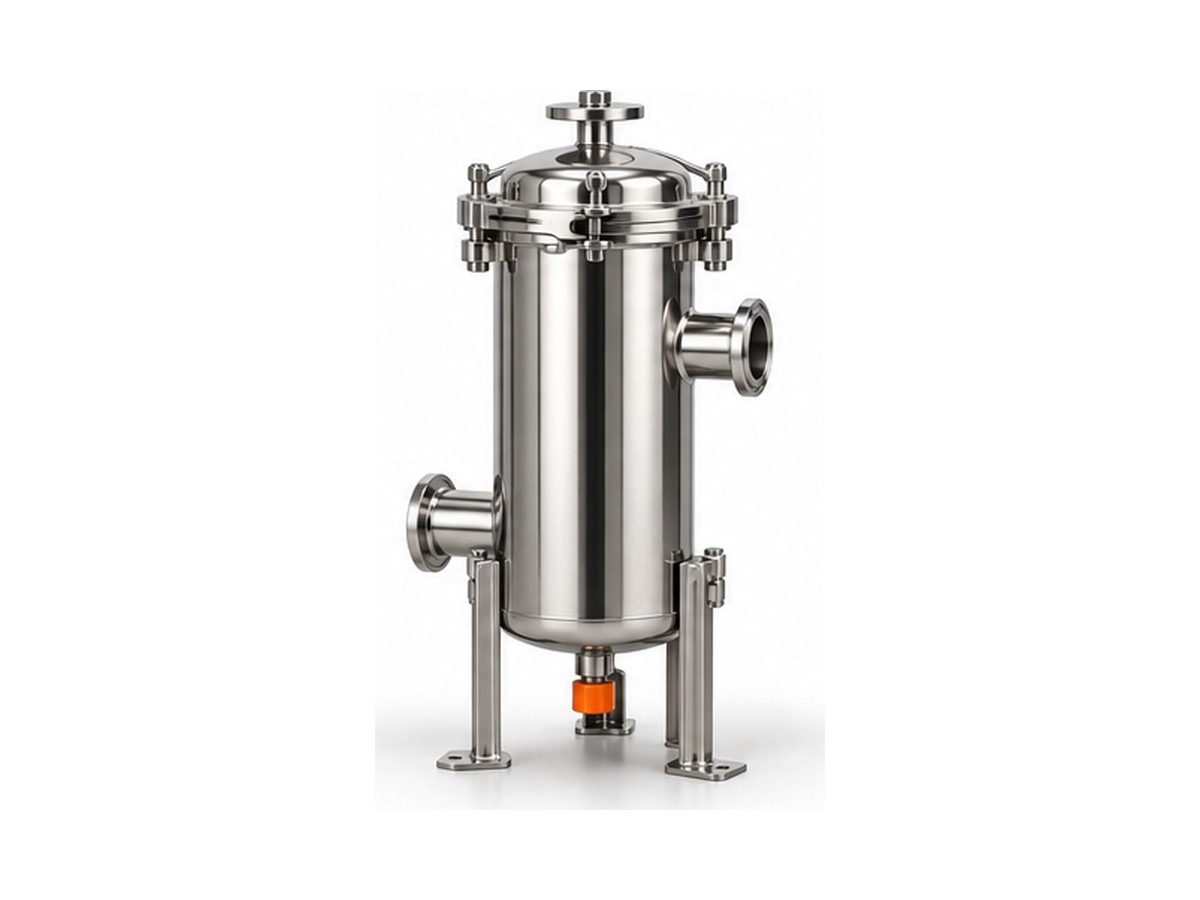

CH sanitary cartridge housing
Electropolished 316L housings for 10" to 40" cartridges in beverage, pharma and electronics water.
Food & beveragePharmaceuticalWater & wastewater
- Cartridges
- 1 – 22 × 10" to 40"
- Pressure rating
- up to 150 psi
- Wetted materials
- 316L SS, Ra ≤ 0.5 µm
- Connections
- Tri-clamp 1" – 4"
Stocked at distributors·Typical lead time 7–10 days
Tri-clamp connections, vent and drain valves, and a lift-off cover with full-length guide rods. 3-A certified.
Specifications
| Cartridges | 1 – 22 × 10" to 40" |
|---|---|
| Pressure rating | up to 150 psi |
| Wetted materials | 316L SS, Ra ≤ 0.5 µm |
| Connections | Tri-clamp 1" – 4" |
Need it sized?
Send fluid, flow and head. An application engineer returns a selection and curve within one business day.
