Valves · Standard series

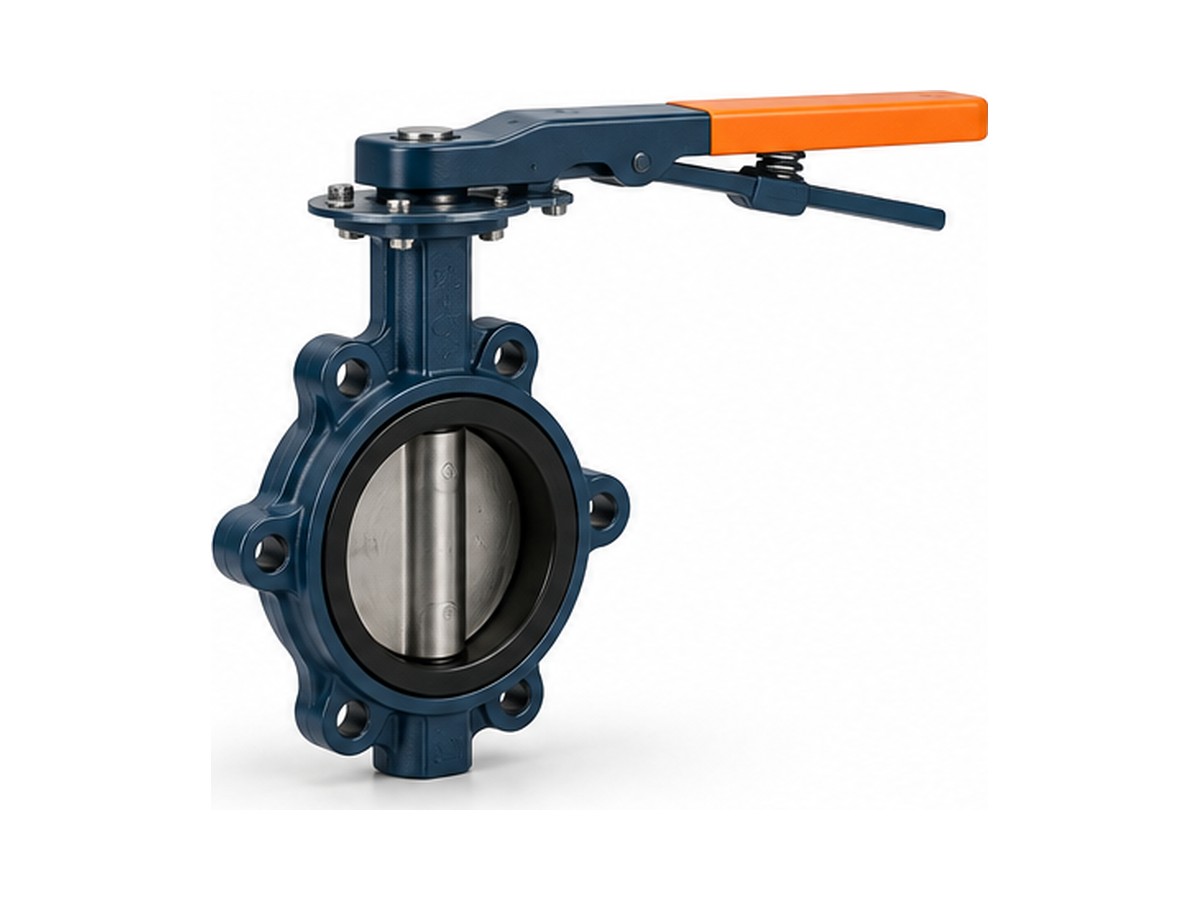

BF resilient-seated butterfly valve
Wafer and lug styles with a replaceable elastomer seat; bubble-tight shutoff to 250 psi.
Water & wastewaterHVAC & building
- Size range
- 2" – 24"
- Pressure rating
- up to 250 psi
- Disc
- Ductile iron, aluminum bronze, 316 SS
- Seat
- EPDM, Buna-N, FKM
Stocked at distributors·Typical lead time 7–10 days
Specified by water utilities and HVAC contractors for isolation on large lines. Lever, gear and actuator options; AWWA C504 compliant sizes available.
Specifications
| Size range | 2" – 24" |
|---|---|
| Pressure rating | up to 250 psi |
| Disc | Ductile iron, aluminum bronze, 316 SS |
| Seat | EPDM, Buna-N, FKM |
Need it sized?
Send fluid, flow and head. An application engineer returns a selection and curve within one business day.
