Valves · Heavy-duty series

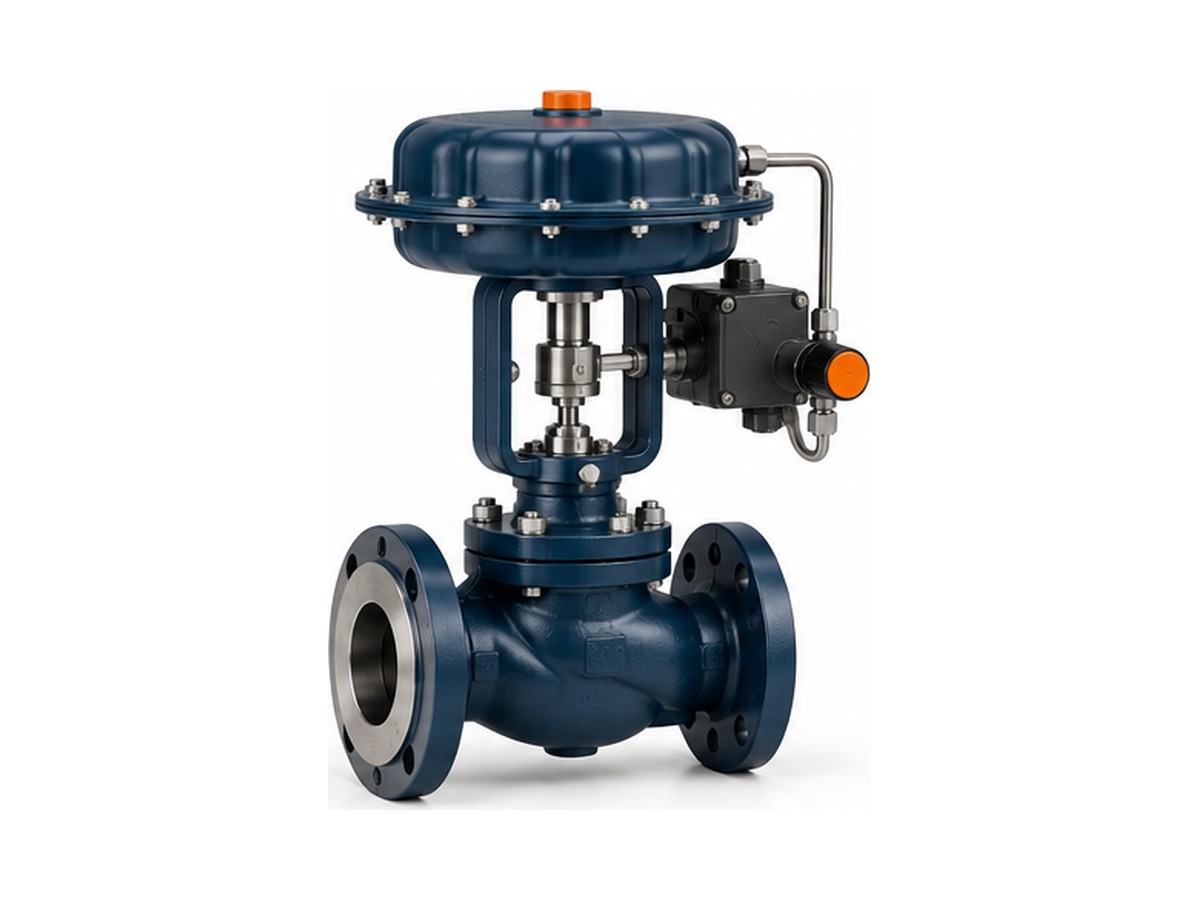

CV globe control valve
Cage-guided control valve with quick-change trim, pneumatic or electric actuation, and smart positioner.
Chemical processingOil & gasWater & wastewater
- Size range
- 1/2" – 16"
- Pressure rating
- Class 150 – 1500
- Rangeability
- 50:1
- Leakage class
- IV, V or VI
Stocked at distributors·Typical lead time 7–10 days
Characterised trims for equal-percentage, linear and quick-opening response. Anti-cavitation and low-noise trims for severe service. Positioners with HART or Foundation Fieldbus.
Specifications
| Size range | 1/2" – 16" |
|---|---|
| Pressure rating | Class 150 – 1500 |
| Rangeability | 50:1 |
| Leakage class | IV, V or VI |
Need it sized?
Send fluid, flow and head. An application engineer returns a selection and curve within one business day.
Ask an engineerMore in valves
