Valves · Sanitary series

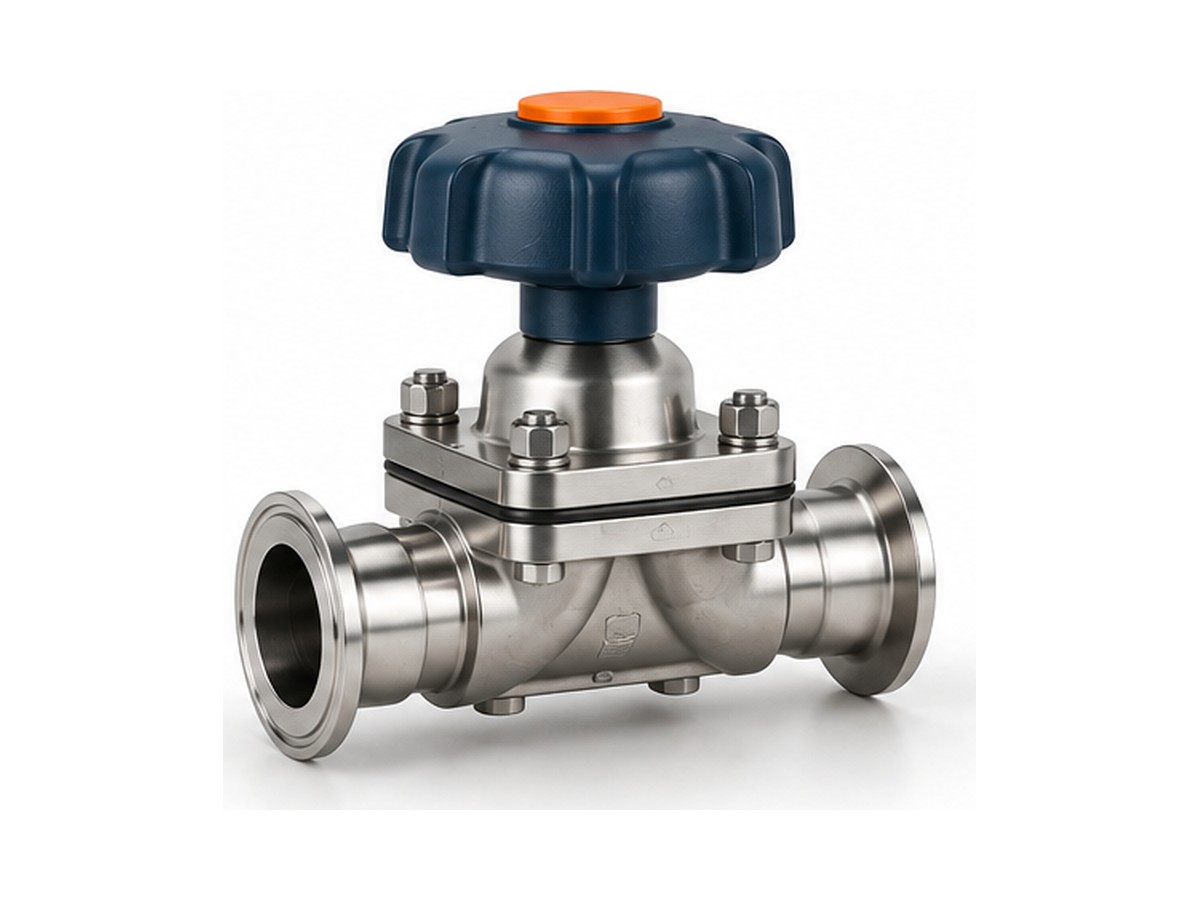

DV sanitary diaphragm valve
Forged 316L bodies with Ra 0.4 µm finish for pharmaceutical and biotech process lines.
Food & beveragePharmaceutical
- Size range
- 1/2" – 4"
- Pressure rating
- up to 150 psi
- Wetted materials
- 316L SS forged, Ra ≤ 0.4 µm
- Diaphragm
- EPDM, PTFE/EPDM
Stocked at distributors·Typical lead time 7–10 days
Weir and zero-static tank-bottom designs, with FDA/USP Class VI diaphragms and full material traceability. Available in block configurations machined from a single billet.
Specifications
| Size range | 1/2" – 4" |
|---|---|
| Pressure rating | up to 150 psi |
| Wetted materials | 316L SS forged, Ra ≤ 0.4 µm |
| Diaphragm | EPDM, PTFE/EPDM |
Need it sized?
Send fluid, flow and head. An application engineer returns a selection and curve within one business day.
