Controls & monitoring · Standard series

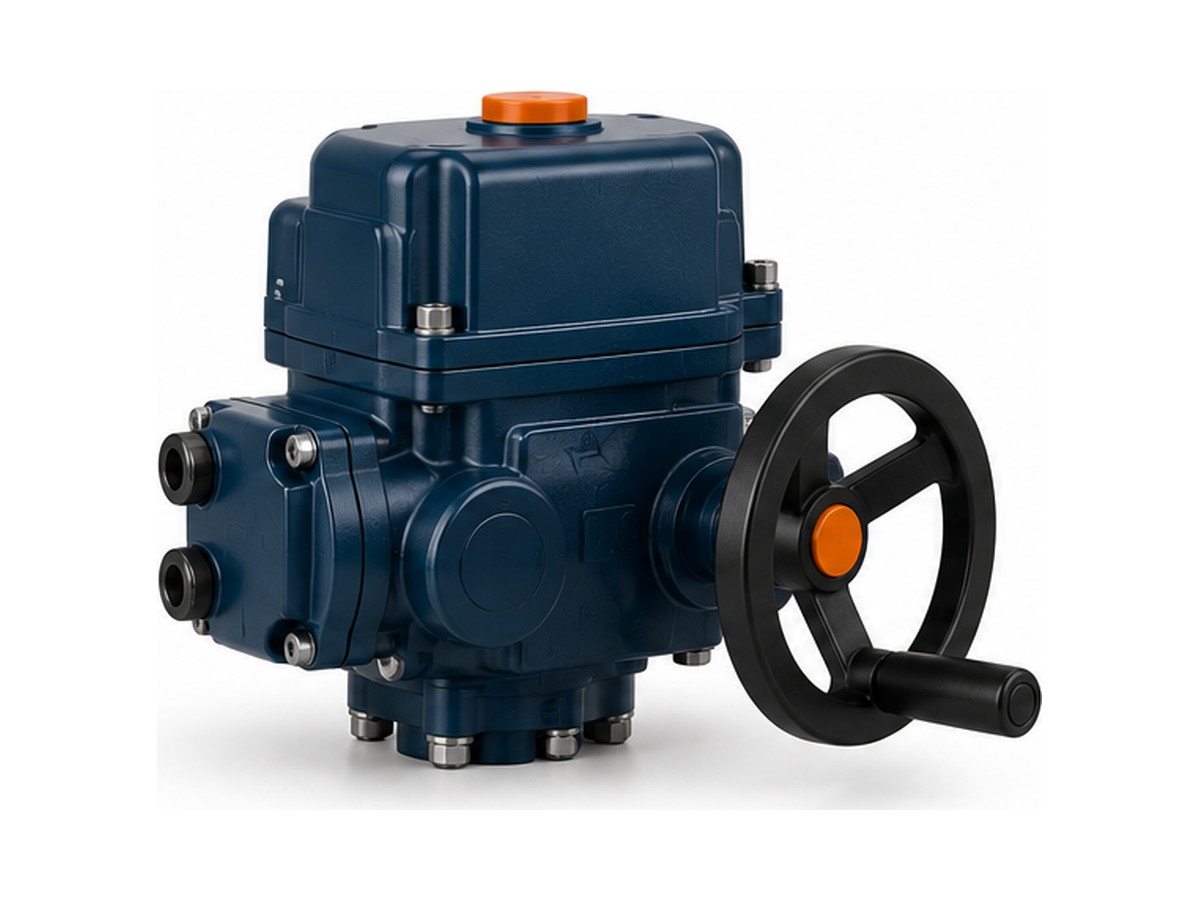

EA quarter-turn electric actuator
On/off and modulating actuators for ball and butterfly valves, 24 V to 480 V.
Water & wastewaterHVAC & buildingChemical processing
- Torque
- 300 – 20,000 in-lb
- Supply
- 24 VDC, 120 / 240 / 480 VAC
- Duty
- On/off S2, modulating S4 75 %
- Enclosure
- NEMA 4X, 7 (Class I Div 1)
Stocked at distributors·Typical lead time 7–10 days
ISO 5211 output, manual override, local position indicator, and a fail-safe battery option. NEMA 4X and 7 enclosures.
Specifications
| Torque | 300 – 20,000 in-lb |
|---|---|
| Supply | 24 VDC, 120 / 240 / 480 VAC |
| Duty | On/off S2, modulating S4 75 % |
| Enclosure | NEMA 4X, 7 (Class I Div 1) |
Need it sized?
Send fluid, flow and head. An application engineer returns a selection and curve within one business day.
