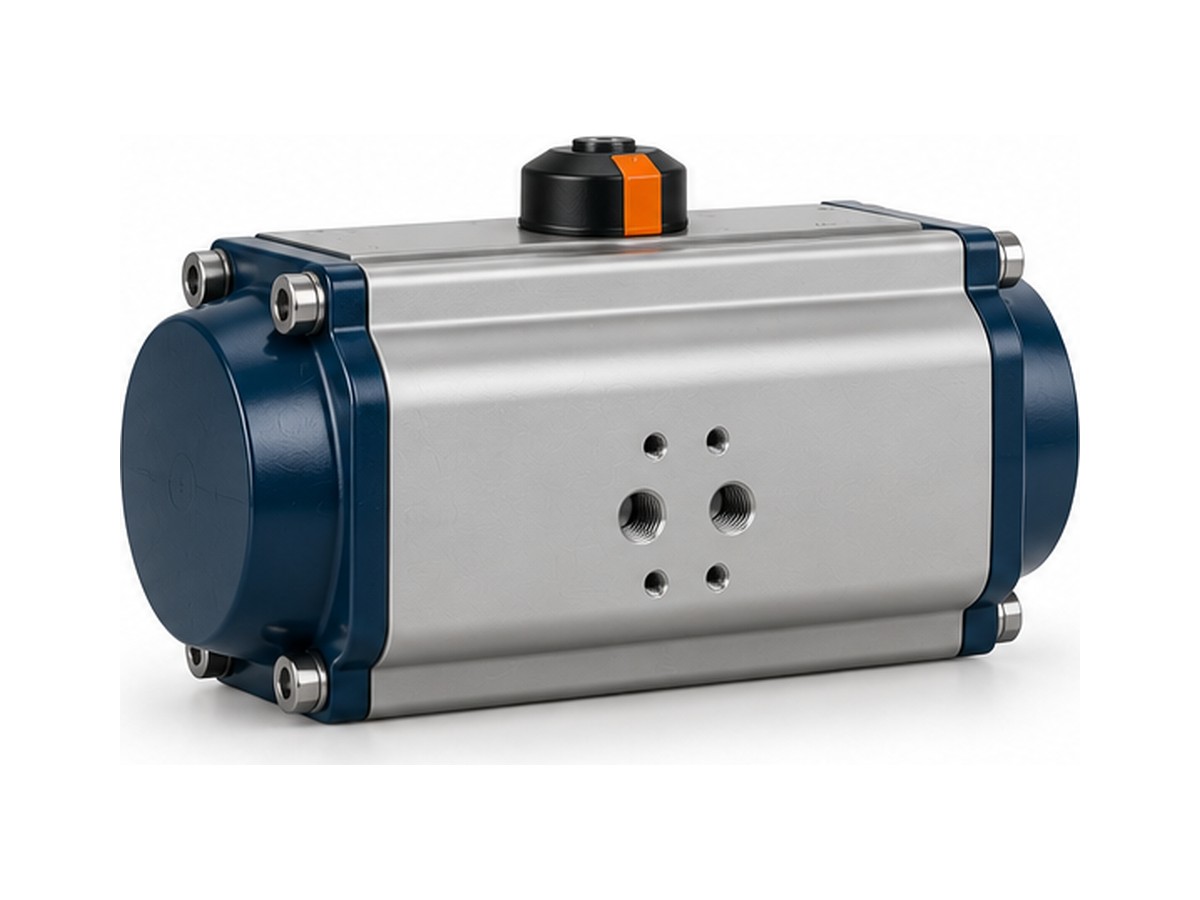

PA rack-and-pinion pneumatic actuator
Double-acting and spring-return actuators with NAMUR interface for solenoids and positioners.
Oil & gasChemical processing
- Torque
- 70 – 50,000 in-lb
- Supply pressure
- 40 – 120 psi
- Temperature range
- -40 to 250 °F
- Interface
- ISO 5211, NAMUR VDI/VDE 3845
Stocked at distributors·Typical lead time 7–10 days
Hard-anodised aluminium body, PTFE-coated pistons, 1 million cycles rated. Spring packs field-adjustable for 40 to 120 psi supply.
Specifications
| Torque | 70 – 50,000 in-lb |
|---|---|
| Supply pressure | 40 – 120 psi |
| Temperature range | -40 to 250 °F |
| Interface | ISO 5211, NAMUR VDI/VDE 3845 |
Need it sized?
Send fluid, flow and head. An application engineer returns a selection and curve within one business day.
