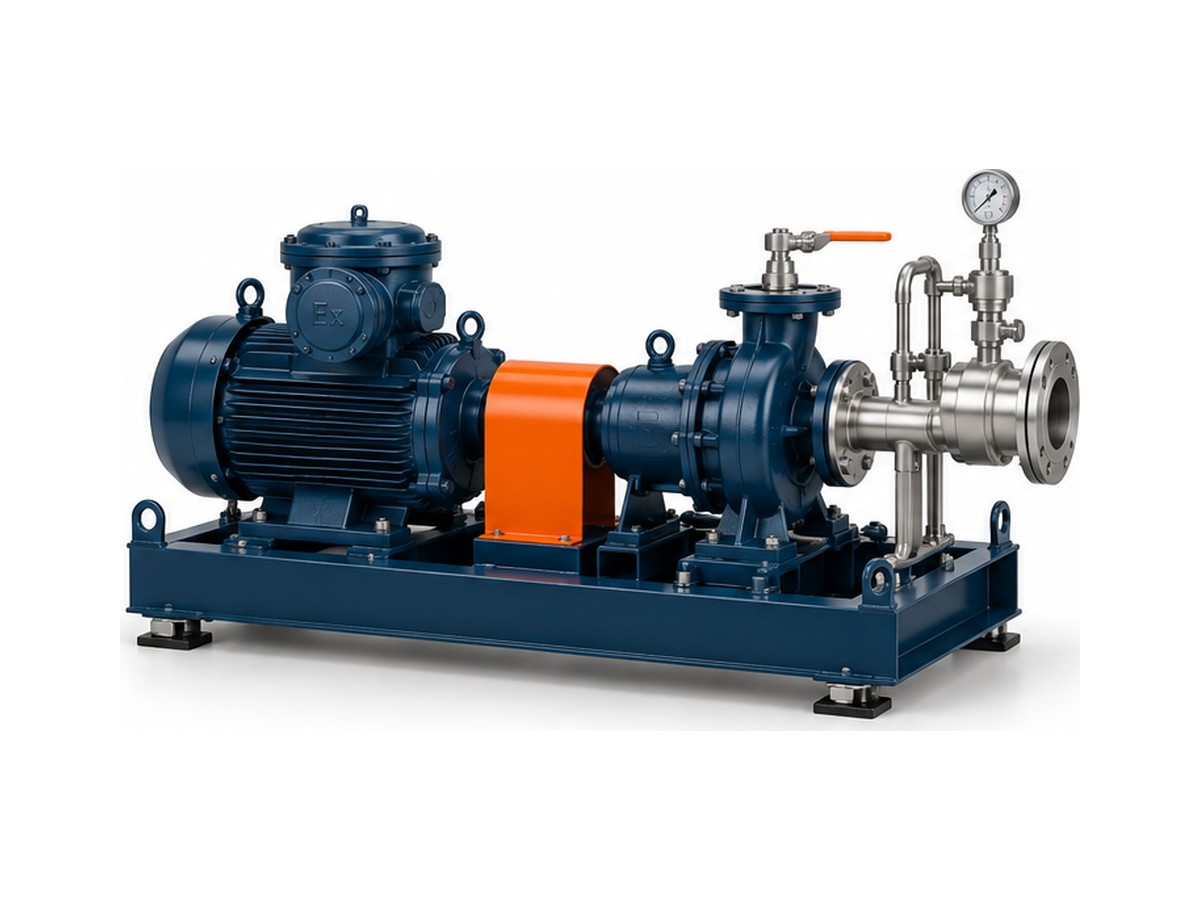

HX hazardous-area pump package
Explosion-proof motor, mag-drive pump, instrumentation and local control for Class I Division 1 areas.
Oil & gasChemical processing
- Area classification
- Class I Div 1 / ATEX Zone 1
- Flow range
- 5 – 600 gpm
- Pump
- MG mag-drive
- Documentation
- Certified drawings, test reports
Stocked at distributors·Typical lead time 7–10 days
Engineered per application with documentation for hazardous-area certification. Delivered as one tagged, tested unit.
Specifications
| Area classification | Class I Div 1 / ATEX Zone 1 |
|---|---|
| Flow range | 5 – 600 gpm |
| Pump | MG mag-drive |
| Documentation | Certified drawings, test reports |
Need it sized?
Send fluid, flow and head. An application engineer returns a selection and curve within one business day.
