Valves · Heavy-duty series

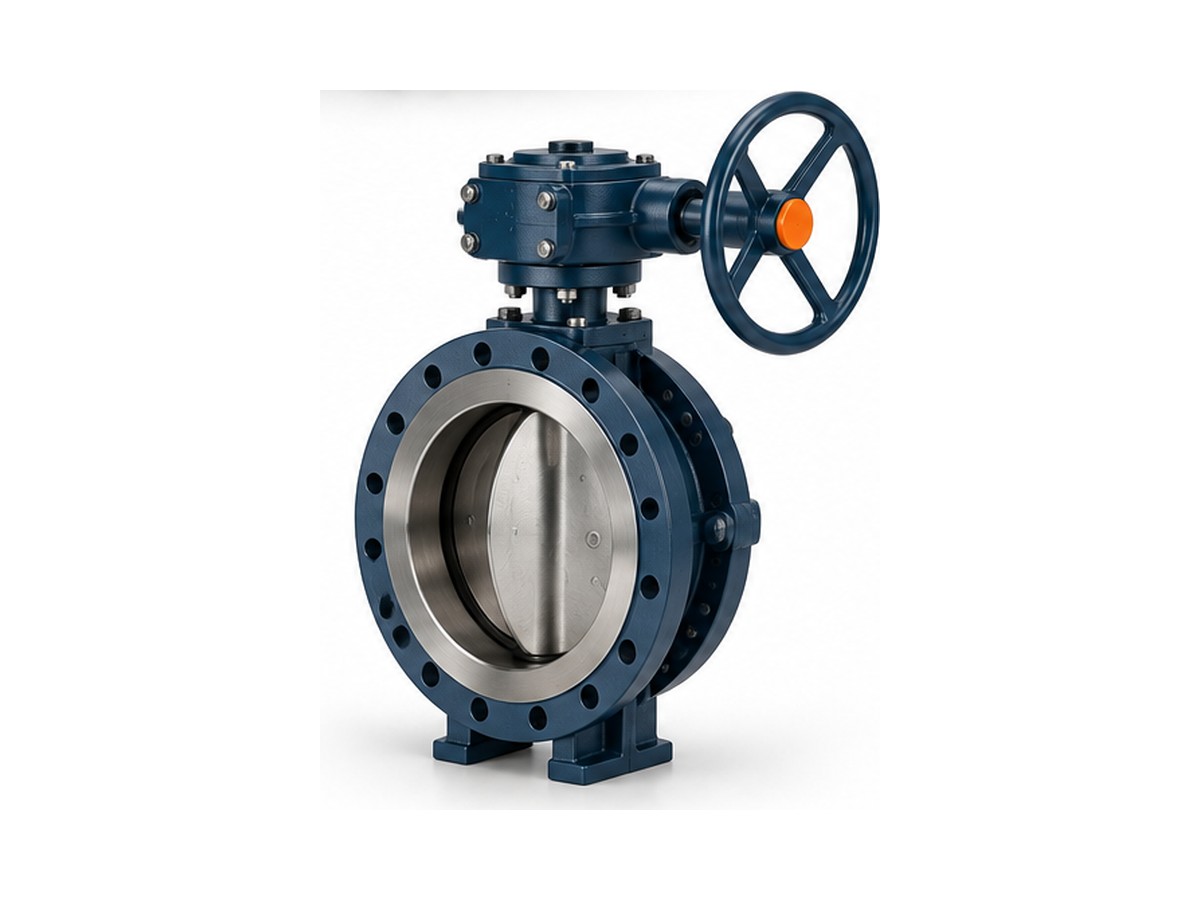

HP double-offset high-performance butterfly valve
Metal or soft seats for steam, hot oil and high-cycle control duty.
Chemical processingOil & gasHVAC & building
- Size range
- 3" – 36"
- Pressure rating
- Class 150 / 300 / 600
- Temperature range
- -50 to 800 °F
- Wetted materials
- Carbon steel, 316 SS, Monel
Stocked at distributors·Typical lead time 7–10 days
Double-offset geometry lifts the disc off the seat at the start of travel, extending seat life well beyond resilient-seated designs. Fire-safe to API 607.
Specifications
| Size range | 3" – 36" |
|---|---|
| Pressure rating | Class 150 / 300 / 600 |
| Temperature range | -50 to 800 °F |
| Wetted materials | Carbon steel, 316 SS, Monel |
Need it sized?
Send fluid, flow and head. An application engineer returns a selection and curve within one business day.
