Valves · Standard series

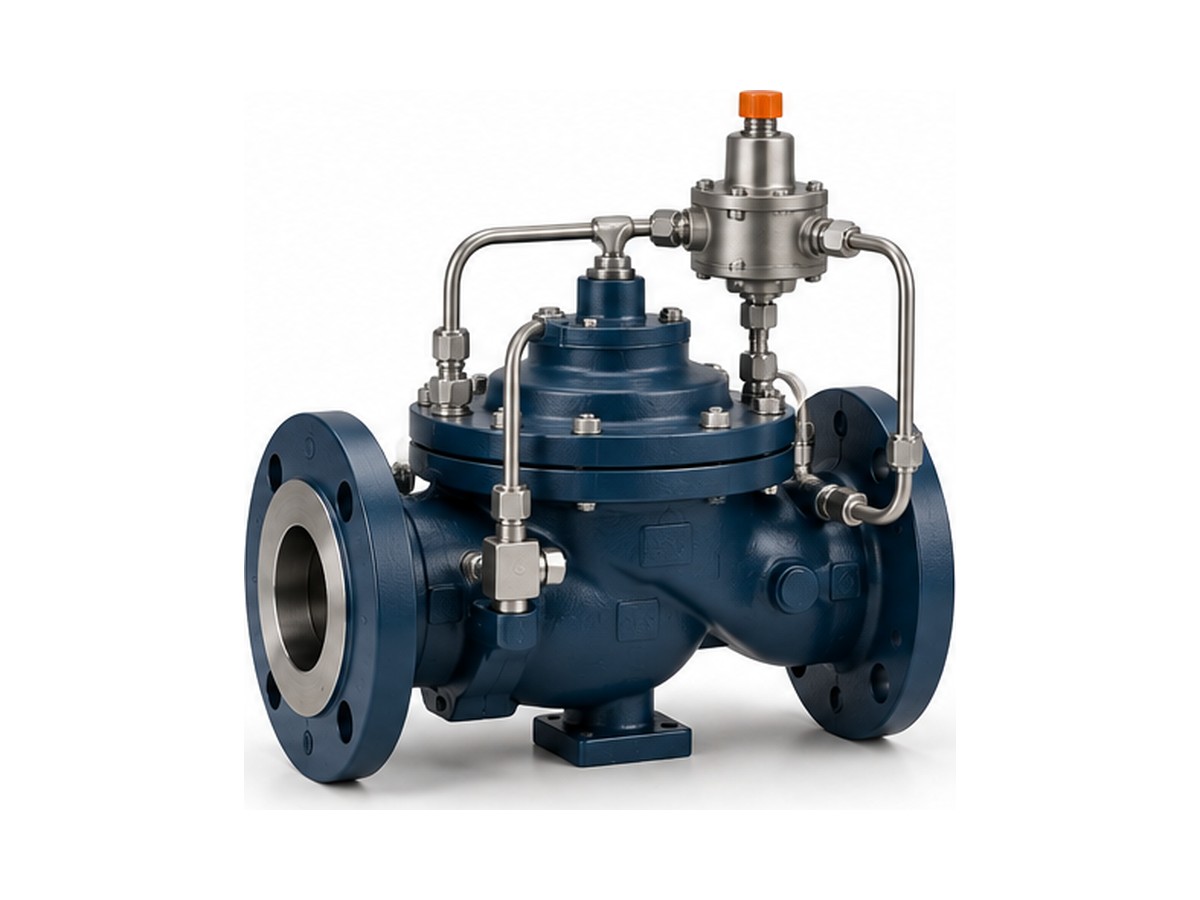

PR pilot-operated pressure-reducing valve
Maintains constant downstream pressure regardless of demand; globe or angle pattern.
Water & wastewaterHVAC & building
- Size range
- 1-1/2" – 16"
- Pressure rating
- up to 400 psi inlet
- Outlet range
- 15 – 300 psi
- Wetted materials
- Ductile iron, bronze trim
Stocked at distributors·Typical lead time 7–10 days
Diaphragm-actuated main valve with an adjustable pilot. Add-on pilots for pressure-sustaining, surge-anticipating and solenoid shut-off functions.
Specifications
| Size range | 1-1/2" – 16" |
|---|---|
| Pressure rating | up to 400 psi inlet |
| Outlet range | 15 – 300 psi |
| Wetted materials | Ductile iron, bronze trim |
Need it sized?
Send fluid, flow and head. An application engineer returns a selection and curve within one business day.
