Controls & monitoring · Standard series

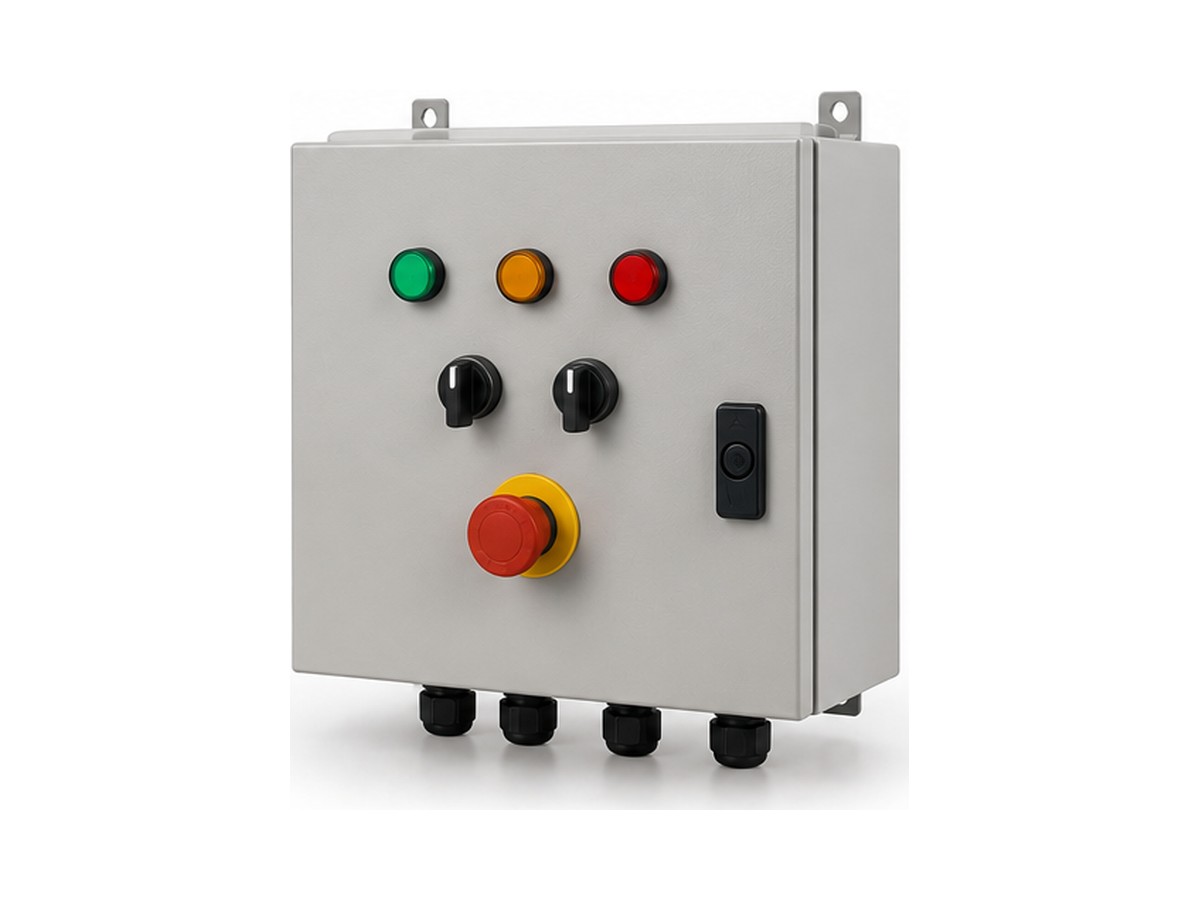

PS pump control panel
Duplex and triplex panels with VFD, soft-start or across-the-line starters and level control.
Water & wastewaterHVAC & building
- Pumps
- 1 – 4
- Motor rating
- up to 200 hp each
- Listing
- UL 508A
- Communication
- Modbus TCP, Ethernet/IP
Stocked at distributors·Typical lead time 7–10 days
UL 508A listed, built to order with alternation, alarms, SCADA interface and remote monitoring.
Specifications
| Pumps | 1 – 4 |
|---|---|
| Motor rating | up to 200 hp each |
| Listing | UL 508A |
| Communication | Modbus TCP, Ethernet/IP |
Need it sized?
Send fluid, flow and head. An application engineer returns a selection and curve within one business day.
