Controls & monitoring · Heavy-duty series

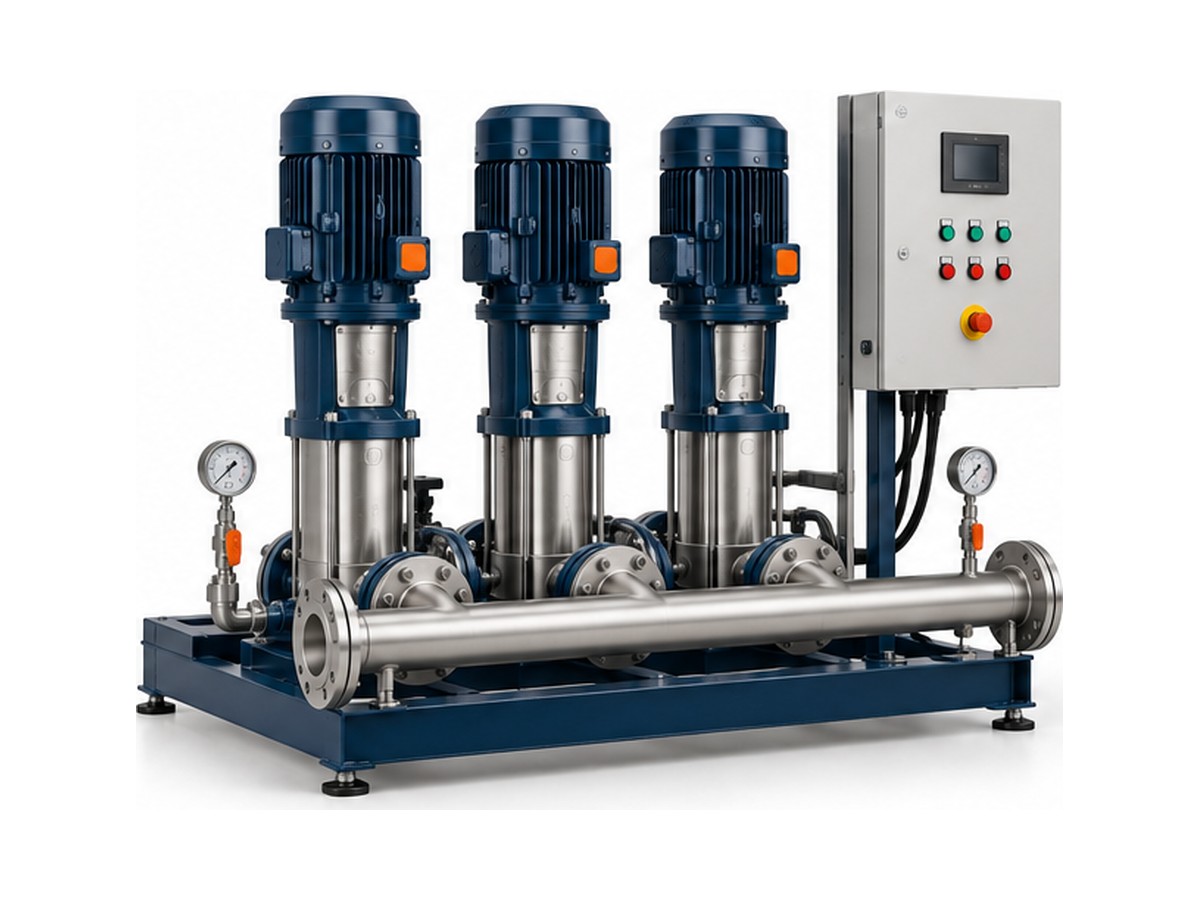

WS packaged booster system
Multi-pump variable-speed booster for buildings, irrigation and process water.
Water & wastewaterHVAC & building
- Flow range
- up to 3,000 gpm
- Pressure rating
- up to 300 psi
- Pumps
- 2 – 6 × VM
- Control
- Constant pressure, BMS interface
Stocked at distributors·Typical lead time 7–10 days
Two to six VM pumps with a controller that stages pumps for constant pressure and minimum energy. Skid-mounted, pre-piped and tested.
Specifications
| Flow range | up to 3,000 gpm |
|---|---|
| Pressure rating | up to 300 psi |
| Pumps | 2 – 6 × VM |
| Control | Constant pressure, BMS interface |
Need it sized?
Send fluid, flow and head. An application engineer returns a selection and curve within one business day.
