Pumps · Standard series

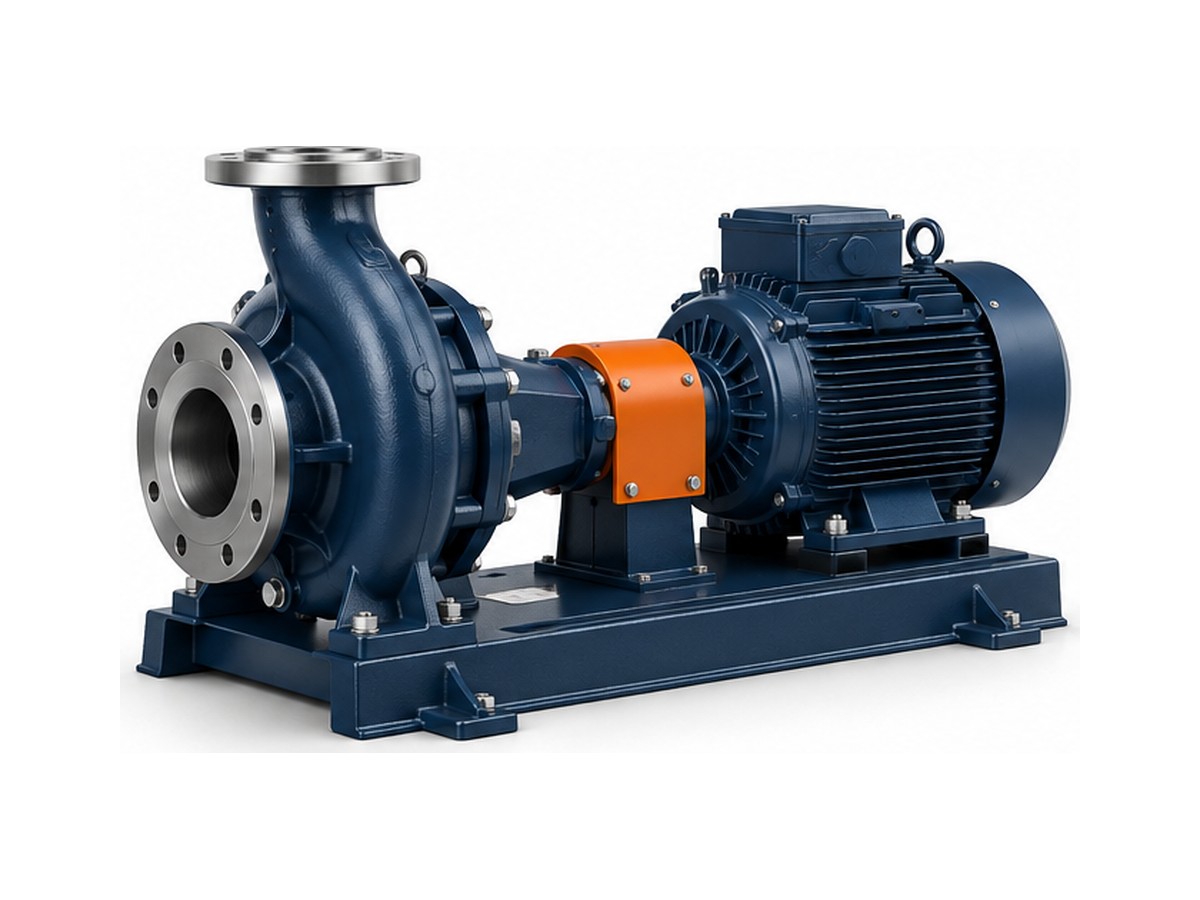

HC Series end-suction centrifugal pump NEW
The workhorse of the range: back pull-out design, ANSI B73.1 dimensions, 42 hydraulic sizes.
Water & wastewaterHVAC & building
- Flow range
- 10 – 4,500 gpm
- Max. head
- up to 720 ft
- Wetted materials
- Ductile iron, 316 SS, CD4MCu
- Motor
- 1 – 250 hp, NEMA
Stocked at distributors·Typical lead time 7–10 days
The HC Series covers general transfer, cooling-water and utility service across plants where interchangeability matters. Every size shares bearing frames and seal chambers with the rest of the range, so spares inventory stays small. Mechanical seal or packed-gland options, with a dry-run protection package available on all sizes.
Specifications
| Flow range | 10 – 4,500 gpm |
|---|---|
| Max. head | up to 720 ft |
| Wetted materials | Ductile iron, 316 SS, CD4MCu |
| Motor | 1 – 250 hp, NEMA |
Need it sized?
Send fluid, flow and head. An application engineer returns a selection and curve within one business day.
