Pumps · Heavy-duty series

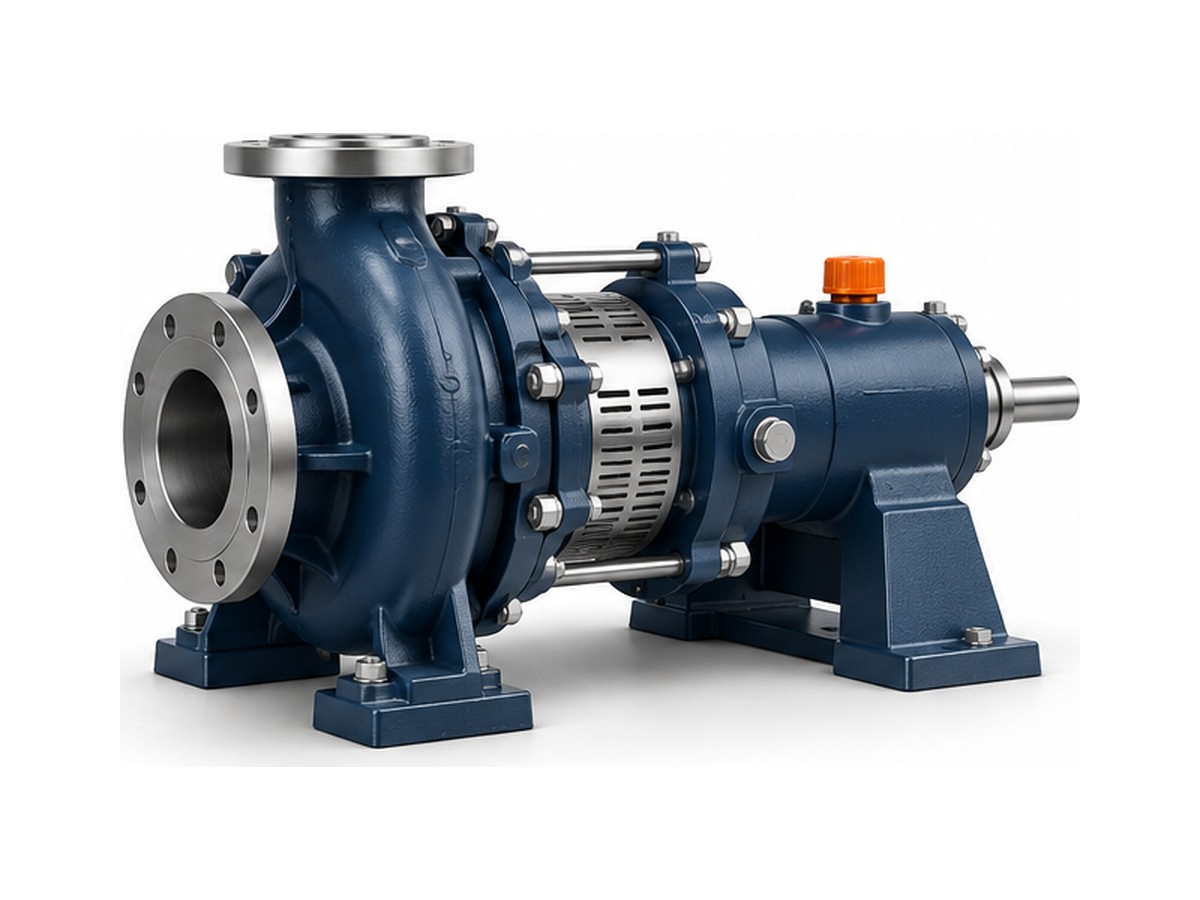

HCX heavy-duty process pump
ANSI/ASME B73.1 process pump for corrosive and abrasive duties, with reverse-vane impeller.
Chemical processingOil & gas
- Flow range
- 20 – 6,000 gpm
- Max. head
- up to 800 ft
- Wetted materials
- 316 SS, Alloy 20, Hastelloy C, titanium
- Temperature range
- -40 to 500 °F
Stocked at distributors·Typical lead time 7–10 days
HCX is specified where fluids attack metal or carry solids. The reverse-vane impeller sets clearance at the cover, so performance is restored without pulling the pump. Alloy 20, Hastelloy and titanium wet ends are stocked.
Specifications
| Flow range | 20 – 6,000 gpm |
|---|---|
| Max. head | up to 800 ft |
| Wetted materials | 316 SS, Alloy 20, Hastelloy C, titanium |
| Temperature range | -40 to 500 °F |
Need it sized?
Send fluid, flow and head. An application engineer returns a selection and curve within one business day.
