Pumps · Standard series

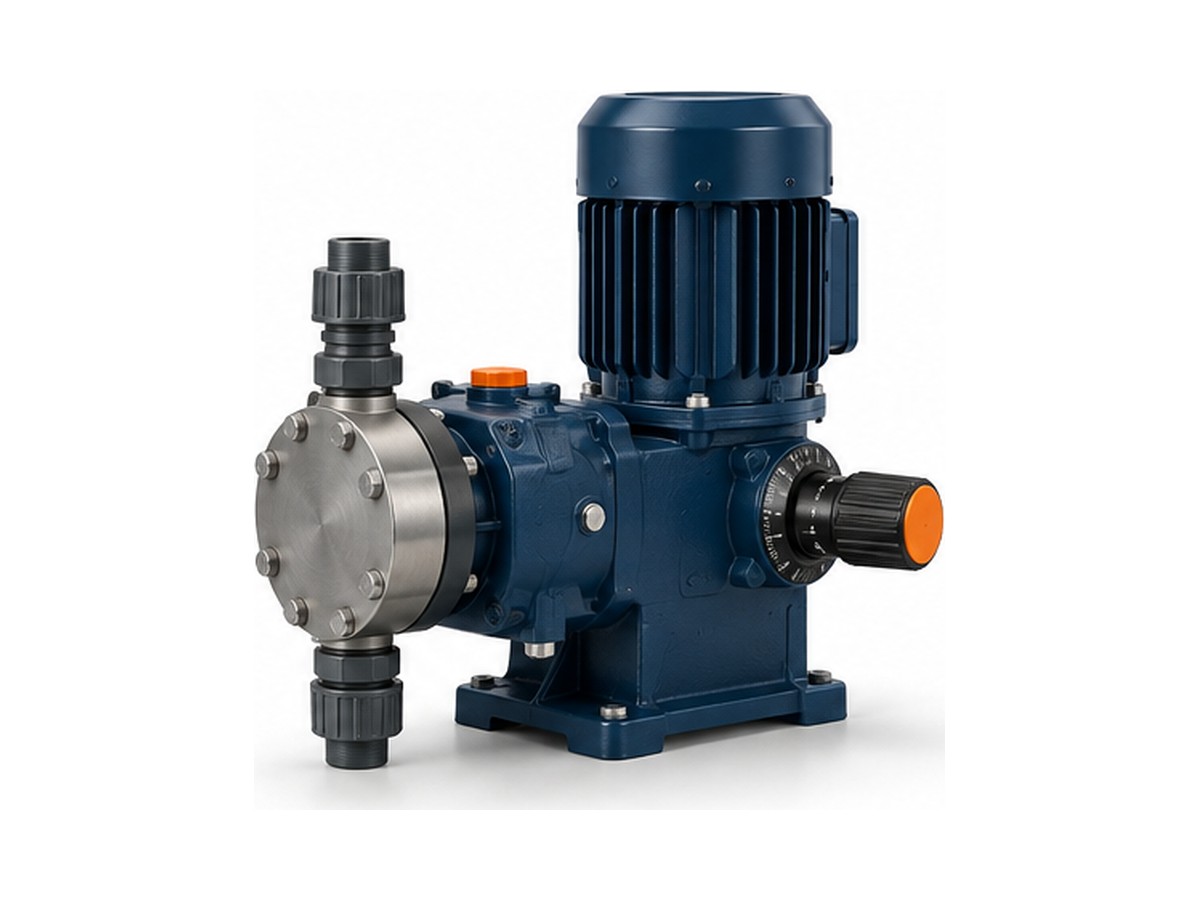

MD motor-driven metering pump
Diaphragm metering pump for chemical dosing with ±1% steady-state accuracy.
Water & wastewaterChemical processing
- Flow range
- 0.1 – 120 gph
- Pressure rating
- up to 1,500 psi
- Wetted materials
- PVC, PVDF, 316 SS
- Accuracy
- ±1 %
Stocked at distributors·Typical lead time 7–10 days
Manual or automatic stroke adjustment, 4–20 mA control, and a hydraulically balanced diaphragm for long service life on hypochlorite, acids and polymers.
Specifications
| Flow range | 0.1 – 120 gph |
|---|---|
| Pressure rating | up to 1,500 psi |
| Wetted materials | PVC, PVDF, 316 SS |
| Accuracy | ±1 % |
Need it sized?
Send fluid, flow and head. An application engineer returns a selection and curve within one business day.
